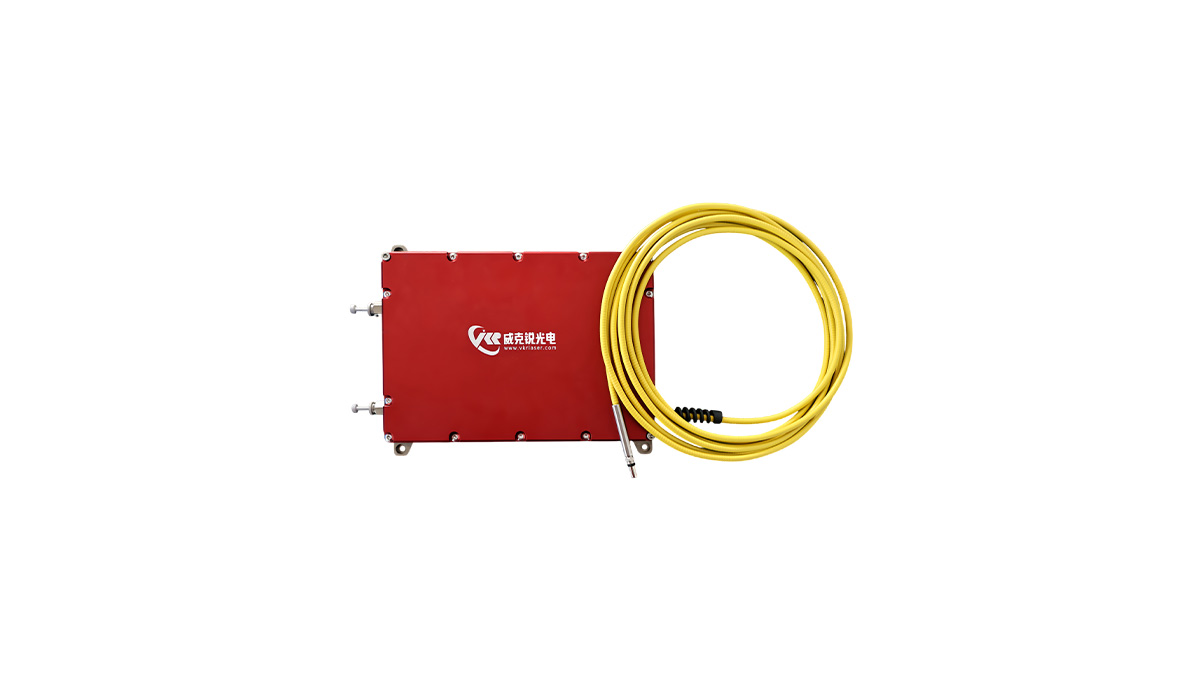

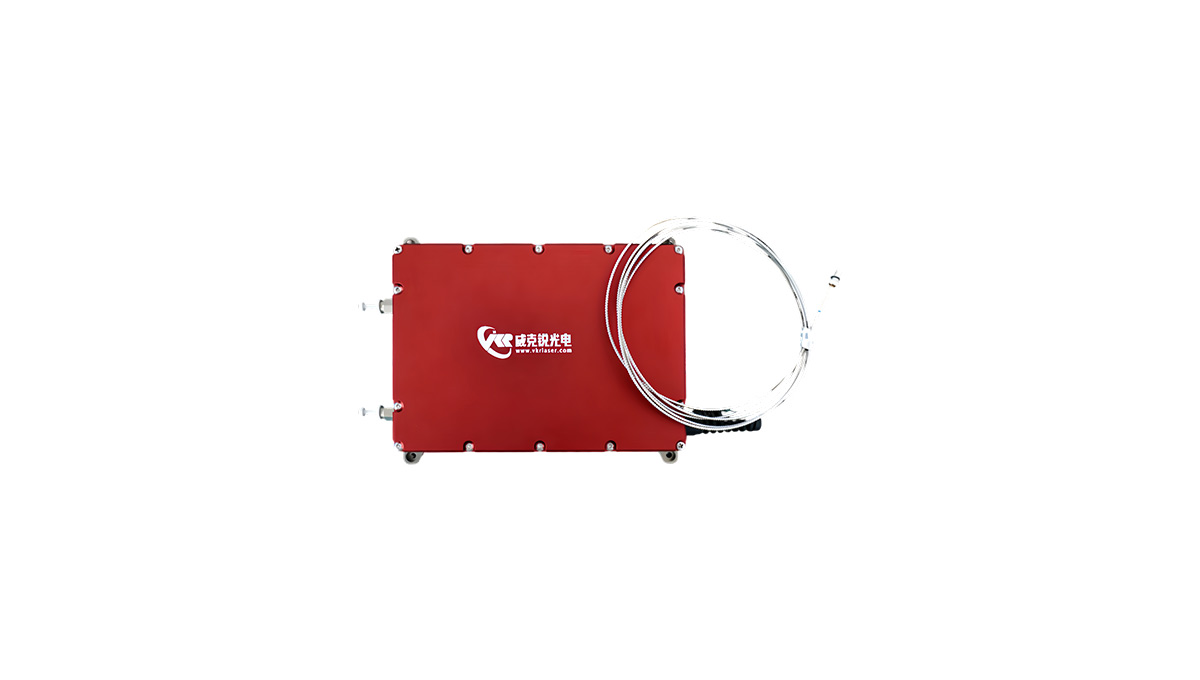

Modular Direct Diode Laser (DDL)
Split-type Modular Direct Diode Laser (DDL), featuring easier installation and higher space utilization
High photoelectric conversion efficiency, high power stability, an excellent choice for laser plastic welding
Split-type Modular Direct Diode Laser (DDL), featuring easier installation and higher space utilization
High photoelectric conversion efficiency, high power stability, an excellent choice for laser plastic welding
Main Features:
Water-Cooled Package
High Photoelectric Conversion Efficiency
High Power Stability
Modular Design
1.Main Features
| Optical Parameters | Unit | Minimum Value | Typical Value | Maximum Value |
| Polarization State | nm | Random | ||
| Output Power | W | 300 | ||
| Power Stability | / | ±1.5% | ||
| Power Adjustment Range | % | 10 | 100 | |
| Central Wavelength | nm | 976nm±5nm | ||
| 95%出光NA | % | 0.16 |
| Fiber Optic Parameters | ||||
| Optical Cable Length | m | 3 | ||
| Fiber Core Diameter | μm | 200/220 | ||
| Fiber Optic Output Head | / | SMA905/D80 | ||
| Fiber Optic Numerical Aperture (NA) | NA | 0.22 | ||
| Fiber Optic Armor Diameter | mm | 8 |
| Electrical Performance | ||||
| Duty Cycle | % | 10 | 100 | |
| Control Method | / | RS232/IO External Control | ||
| Working Mode | / | Continuous / Modulated | ||
| Power Input Voltage | V | 48V DC | ||
| Power Consumption | V | 1000 | ||
| Photoelectric Conversion Efficiency | % | 35 | ||
| Maximum Modulation Frequency | HZ | 50 | 20K |
2.Size Specifications
