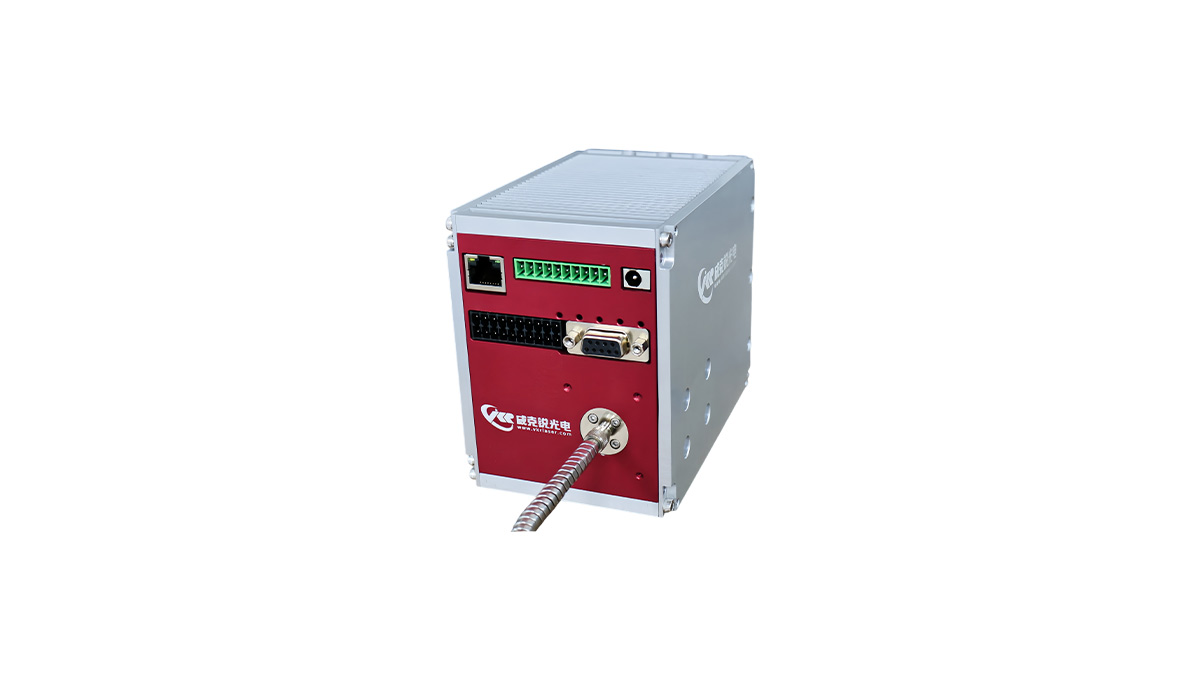

High-Speed Infrared Pyrometer

Ultra-High-Speed Infrared Thermometer with Accurate Temperature Measurement

High measurement accuracy, full digital signal processing, and strong anti-interference capability

Temperature measurement range: 100℃-600℃

Withstands ambient temperatures up to 80℃ without cooling

Adopts a 1.8-2.1μm short-wavelength detector, suitable for processing materials such as ceramics and metals

Optical fiber, fiber optic lens, and laser aiming for precise positioning

High-precision 16-bit ADC acquisition and two analog output channels

Configurable input and output ports

Ultra-high measurement accuracy, excellent repeatability and stability, with a response time of 40μs

Technical Parameters

Basic Parameters

Protection Temperature

Ambient Temperature

Relative Humidity

IP65

Optical Fiber / Fiber Optic Lens -20℃-80℃

Controller 0℃-80℃

10%-95%，Non-Condensing

Electrical Parameters

Analog Output	I/O Port	GPIO Port	Communication Interface	Output Impedance	Power Supply	Maximum Current
0/4-20mA,0-5V/10V Output	Two input channels, two output channels (expandable to 4 channels)	Two input channels, two output channels (expandable to 4 channels)	Ethernet,RS485	500Ω（Max）-100KΩ（Min）	24V DC	100mA

Measurement Parameters

Spectral Response	System Accuracy	Repeatability	Temperature Resolution	Response Time	Emissivity	Transmittance	Signal Processing
2.3um	±（0.3% of Reading + 2℃）（Ambient Temperature: 23±5℃）	±（0.1% of Reading + 1℃）（Ambient Temperature: 23±5℃）	0.1k	40us （90% Signal）	0.1-1.1（Configurable）	0.1-1.1（Configurable）	Peak Hold, Valley Hold, Average Value, Anti-Bounce, Advanced Hold
