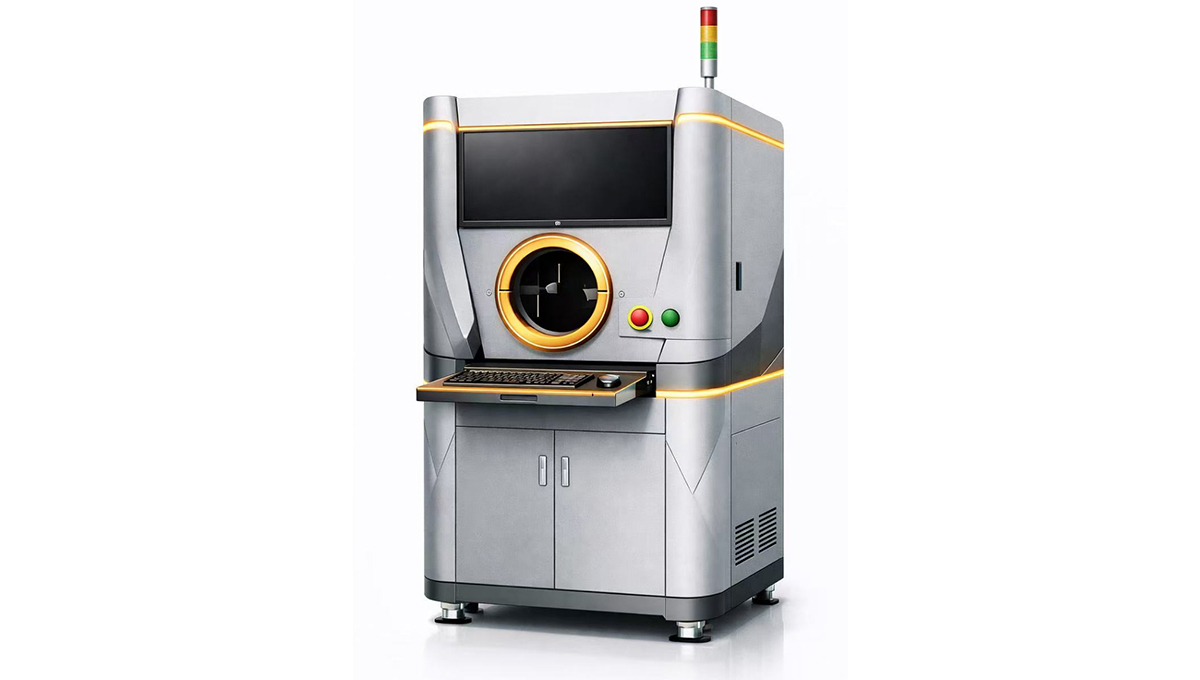

OCT Plastic Welding Non-Destructive Defect Detection Equipment

100% online full inspection

Internal welding interfacerecognition

Welding surface defect detection

Flat-level hollow detection

1. Axial Slicing Imaging

New axial tomography scanning capability:

Get thickness directional structure information

Identify internal micro-layers

Judging the continuity of plasticized areas

Locate structural breaks

The weld seam is no longer just a plane.

but is an 3D structure with thickness and volume.

2. 3D imaging reconstruction

Through continuous tomographic data reconstruction, achieve:

Weld seam 3D model constructionVisualization of the spatial distribution of the plasticizer layer

Quantification of empty drum volume

Precise positioning of layer lengthWelding quality officially enters the 3D structural verification era.
